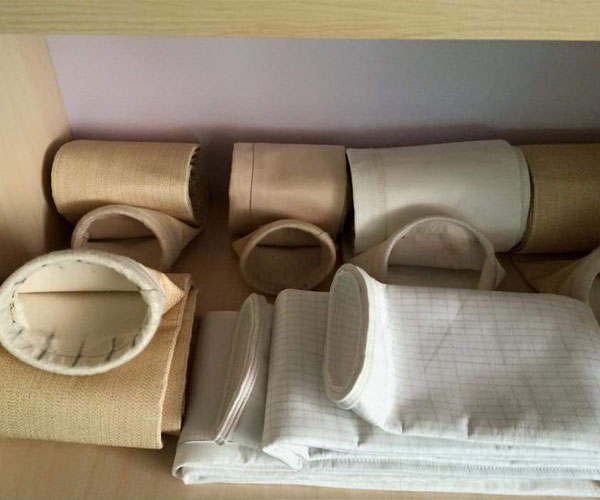

Acrylic Filter Bag

Acrylic Filter Bag

Acrylic needle punched felt 450gsm, 500gsm, 550gsm.

Enquiry PDF


  • Material: Acrylic needle punched felt 450gsm, 500gsm, 550gsm.
  • Finish Treatment: Singed, calendared, heat set, water & oil repellent, blending and line antistatic, PTFE membrane
  • Size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect. Any length is available. Special size is customizable.
  • Process Method: sewing or welded
  • Advantages:
    High temperature resistant
    Working temperature:240 degree
    Max temperature: 260 degree
    yellow color
    Acrylic fiber has large filtration area and excellent filtration performance.
  • Dust Collector Filter Bag:
    Since every filter has its own characteristics and parameters,
    when we chose filter material for dust collector filter bags,
    we have to know the following parameters: temperature, humid,
    dust diameter, gas chemical properties, dust abrasive, filter's mechanical parameters.
    Generally, SFF dust collector filter bags are widely used in industrial waste gas filtration, useful dust, high temperature gas filters.
    Shanghai filter bag factory provides you good solution according to dust characteristics, help you chose good filter material to achieve best filtering effective.

Technical Data:

    Specs And Features
    Material Acrylic/ acrylic scrim Thickness 1.9
    Weight(g/sqm) 500 Density(g/cm³) 1.17 Air Permeability (m³/m²/min) 10~14
    Warp Tensile Strength(N/5x20cm) >1000 Weft Tensile Strenght(N/5x20cm) >1300 Moisture Regain (20℃ And 65% r. humidity) 1.00%
    Warp Elongation(%) <30 Weft Elongation(%) <50 Support Combustion Yes
    Continuous Dry Heat Operation(℃) 135 Continuous Moist Heat Operation(℃) 125 Max Short Dry Heat Surge(Short Term)(℃) 150
    Biological(Mildew, Bacteria) very good Alkalis fair Mineral Acids very good
    Organic Acids excellent Oxidising Agents good Organic Solvents very good
    Finishing Singeing-calendering-heat setting
    Product Applications Chemical/ Steel/Waste Incineration/Thermoelectricity/Construction Material
    Usage Air Filter
    Type Filter Felt
    Specialized in supplying
    • 1. Needle puched felt
    • 2. Woven filtration fabric
    • 3. Filter bags
    • 4. Filter cages
    • 5. Filter tubing automatic production line
